What is a TRIAC power supply?

A Triac is a high-speed solid-state gadget that can switch and manage Air Conditioner power in both directions of a sinusoidal waveform. As a solid-state tool, thyristors can be utilized to control lights, electric motors, heating units, and so on.

TRIAC circuits are commonly made use of, as well as usual, in AC power control applications. These circuits can switch high voltages, in addition to really high levels of presence in both parts of an Air Conditioner waveform. They are semiconductor devices comparable to a diode.

TRIAC is often utilized as a way of light lowering in residential illumination applications and can even function as a power control in motors.

To figure out even more about TRIAC control for LEDs, look into our new blog below.

Why pick TRIAC?

TRIAC functions to switch high voltages, making it a perfect choice for various electrical control remedies. It indicates that TRIAC can work to satisfy our day-to-day light control requirements. Using TRIAC circuits is not limited to family lights applications; it can likewise use them to control little electric motors and followers and various other control applications and A/C switching. TRIAC is a multi-purpose control that is a beneficial method for individuals to meet their different demands.

Benefits of TRIAC LED Driver

TRIAC dimming comes with the benefit of high effectiveness, high modification precision, lightweight, tiny portable size, and simple push-button control. TRIAC dimming dominates the type of dimmer as well as several products are developed with this type of dimmer. The significant benefit of TRIAC dimmer is that it has a low dimming expense when you use it with LED light.

The disadvantage of TRIAC dimmer is that the lowering performance is rather reduced, causing a constricted variety of dimming. As the TRIAC button functions to switch on the current, it cannot shut off the current entirely even at the most affordable; there is a weak current flowing. It is a challenging problem dealt with in the present LED dimming method.

What is the objective of a TRIAC?

The TRIAC enables existing flow in either direction, with circulation changing with the polarity of eviction voltage. It can be derived from the A/C voltage related to the TRIAC’s tons terminals.

What does TRIAC imply?

TRIAC stands for Triode for Alternating Current and is a button that is utilized to manage power. When made use of in lights applications, also described as ‘TRIAC lowering.’

How do you control TRIAC?

TRIAC control works through an entrance electrode when a positive or unfavorable voltage is used.

Causing the circuit enables the conduction of electricity till the present falls below the intended limit. In this instance, a TRIAC allows for high voltage to travel through with really tiny control currents.

Using phase control, a TRIAC can manage the portion of the present that flows with a circuit lots.

What is a TRIAC controller?

A TRIAC controller acts as a high-speed button and is made use of in controlling the amount of electric power that undergoes a light bulb. It typically has a trigger that dictates when power can be carried out and decreases the voltage to prevent the power being supplied from going overboard.

A TRIAC control LED functions by managing the strength of light: when the button reacts, much less power is carried out, and the bulb lowers.

What is a TRIAC receiver?

A TRIAC receiver makes use of similar ideas to the easier thyristor. It is a delicate gateway with a 200V obstructing voltage.

What is TRIAC in power electronics?

A TRIAC is a semiconductor gadget with three terminals that control the flow of the present. Therefore, the name Triac is perfect for operation using A/C power for switching objectives, considering that it can manage the existing flow for both fifty percent in a present rotating cycle.

Can I make use of a TRIAC to switch over DC?

Yes, Can be utilized in GATE incurable to set off. But once triggered, it will continue forever switched on. So it has minimal applications in the dc field. Eventually, The TRIAC is a three-terminal electronic gadget, which works as a button for AC signals.

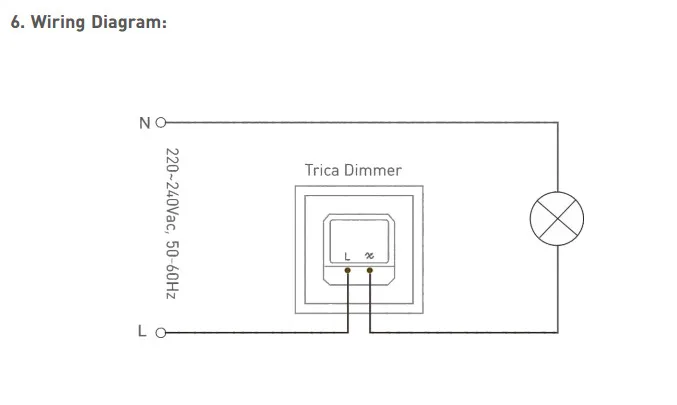

How to connect a TRIAC LED control system?

Connecting TRIAC dimmers to the LED drivers can be a tough job; however, you do not need to worry, we will inform you of the proper way to carry out the job. Continue reading to recognize the stepwise treatment to cord TRIAC dimmer with LED chauffeur.

The most widely used TRIAC dimmer is the basic forward phase dimmer. It includes a TRIAC and also a resistance circuit. A potentiometer is attached to regulate the resistance, and also, RC time holds the delay time created before starting up a TRIAC which is the shooting angle.

When the TRIAC is energetic, it is known as the transmission angle. It will generate a voltage waveform that is a ‘sinusoid,’ i.e., a phase-cut sine wave. A basic switch converter is utilized to control the outcome without restrictions on the input voltage. In such a case, the phase-cut waveform given by the phase dimmer is first equated, and details are used in controlling the reference for output policy.

You require to be conscious that leading-edge dimmers make use of the TRIAC switch to control the power while trailing edge dimmers take advantage of IBGTs in maintaining power. For that reason, it is necessary to make sure that your dimmable LED motorist remains in line with the dimmer switch before making the acquisition.

Model: E6-TD1
Dimming Mode:Leading edge(triac)
Input Voltage:200-240VAC,50-60Hz
Load Power:Incandescent lamp:25-500W
                  High-voltage halogen lamp:25-500W
                  Dimming LEDs:6-300W
Working Temp.:-30℃~55℃

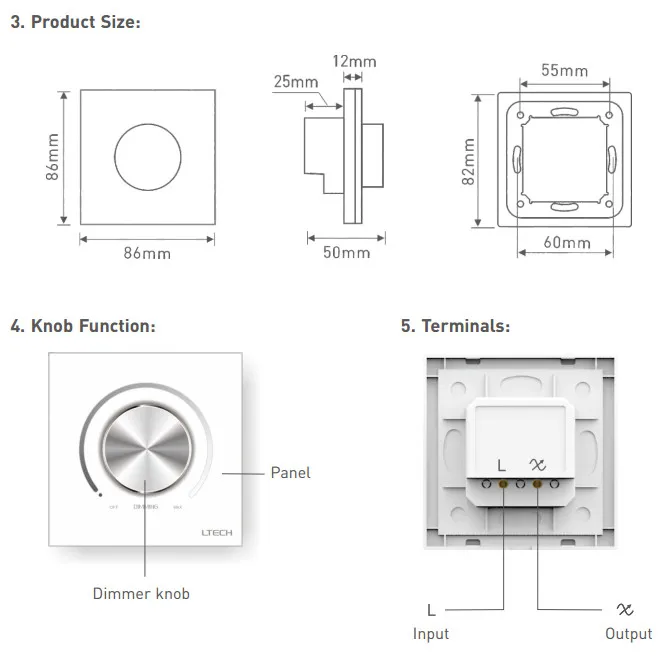

Dimensions:L86×W86×H50mm
Package Size:    L106×W106×H60mm
Weight(G.W.): 180g

6
E6-TD1 2_
E6-TD1 3_
E6-TD1 4_
