LED Power supply

100w 24v led power supply 120v to 24v dc power supply 4a ultra thin power supply 4 amp CPS Type

MODEL 12V 100W 24V 100W
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 8.3A 4.16A
CURRENT RANGE 0~8.3A 0~4.16A
RATED POWER 100W 100W
RIPPLE& NOISE (MAX.) 120mVp-p 120mVp-p
VOLTAGE TOLERANCE ±1% ±1%
SETUP, RISE TIME 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME(Typ.) 30ms/230VAC 25ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 84% 85%
AC CURRENT(Typ.) 2A/115VAC 1.2A/230VAC
INRUSH CURRENT(Typ.) COLD START 45A
SHORT CIRCUIT protection type: recovers automatically after fault condition is removed
PROTECTION OVER LOAD 105~135% hiccup mode, auto-recovery
DC ADJ. RANGE 115%~135% Cut off the output, auto-recovery
ENVIRONMENT WORKING TEMP -20℃~ +60℃
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP, HUMIDITY -40℃~+85℃,10%~90%RH
SAFETY&EMC SAFETY STANDARDS CE, ROHS
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC O/P-FG:0.5KVAC
EMC TESTING STANDARD EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006

24v power supply

Does all of your electrical work and assembly need a power supply? With our 100w 24v power supply, you’ll be set and ready for anything. Just plug it in and your work is done!

The 100w 24v power supply converts AC to DC power without electrical isolation, so you never have to worry about voltage drops. It’s completely safe with no unsafe or icky electromagnetic radiation, and can easily provide plenty of instant electricity for all your LED needs.

  • Finish: sliver
  • Size: 129*97.9*30 mm
  • Lamp Source: LED
  • Total Wattage: 100 watts
  • Single output
  • Outputs: 24v 12v
  • Easy operation Installing

Indoor ultra-thin series power supplies

60w 24v power supplies in stock Add to cart

100w 24v power supplies in stock Add to cart

150w 24v power supplies in stock Add to cart

250w 24v power supplies in stock Add to cart

350w 24v power supplies in stock Add to cart

400w 24v power supplies in stock Add to cart

Find more in Xinreal Inc shop, Order online, Connect With US for more details, Serving our customers since 2011, and for more detailed information please view the relevant PDF data sheet or fill out and submit the contact form

If you are having a problem with the power supply, contact us at any time.

Features

The durable and dependable open frame 100w DC 24v power supply can convert input voltage from a range of outlets found worldwide. It is made to last as the aluminium casing encases the PCB, ensuring sustained longevity even when in adverse environments such as hot or humid climates. This 100-watt open frame converter is proven to outlast your batteries due to its continual efficiency so long as it gets enough ventilation, making this product an invaluable ally for those who consistently use their LED lights late into the night without a power intermediary!

Find more in Xinreal Inc shop, Order online, Connect With US for more details, Serving our customers since 2011

Business Hours: Monday to Thursday 9:00 am – 6:30 pm

Power Supplies Search or din rail power supply

View Products Filter by attributes

Indoor open frame 24v power supplies use for Lights

24V power supplies

  • Total Power Wattage: 35-600 watts
  • Single output
  • Outputs: 24v 12v 5V in stock
  • Easy operation Installing
  • Add to cart Order online

Power Supplies Search, select the ideal 24 Volt DC power supply 24v din rail power supply

Ultra-thin 24v power supplies for LED modules

100W 24V power supplies

  • Total Power Wattage: 60-400 watts
  • Outputs: 24v 12v 5V in stock
  • Add to cart Order online

Power Supplies Search,select the ideal 24 Volt DC power supply

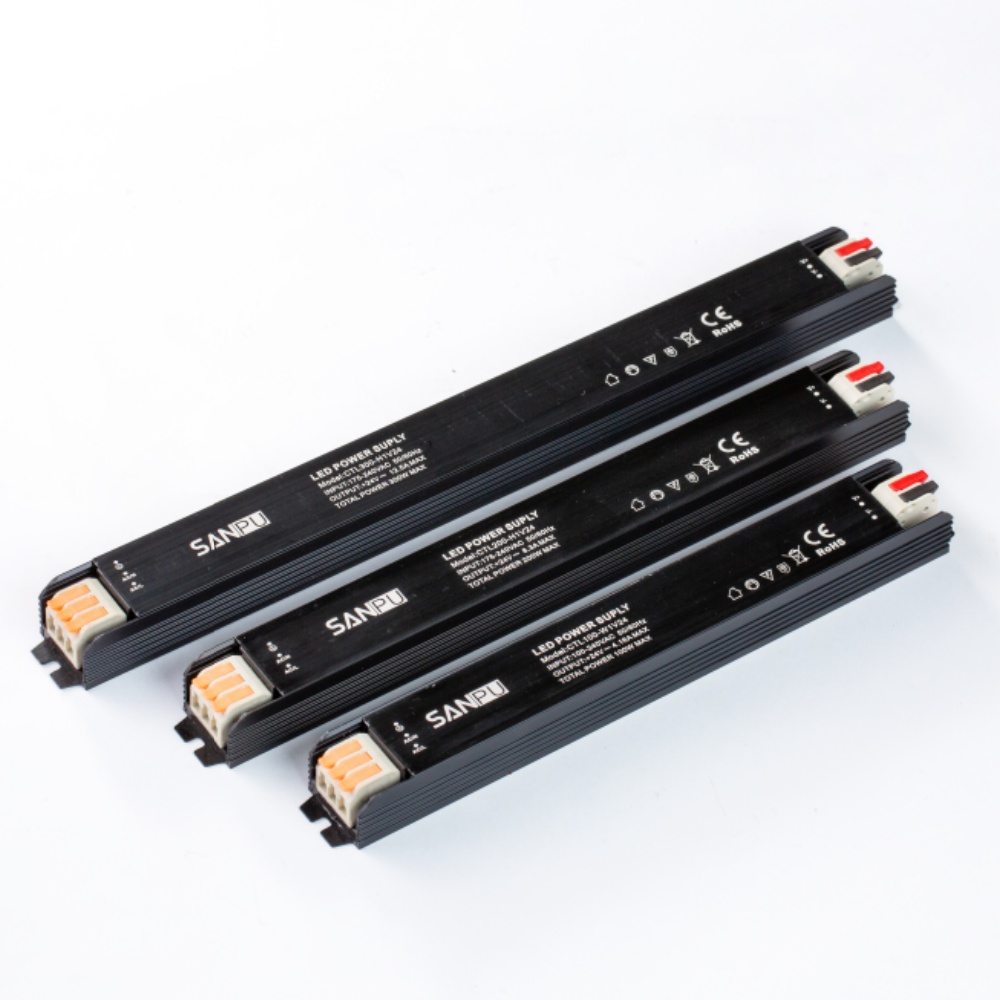

Slim black 24v power supplies for LED modules

slim 24V power supplies

  • Total Power Wattage: 35-300 watts power supplies
  • Output: 24v 12v 5V in stock
  • Add to cart Order online
  • Sign in to see your user information

Power Supplies Search,select the ideal 24 Volt DC power supply

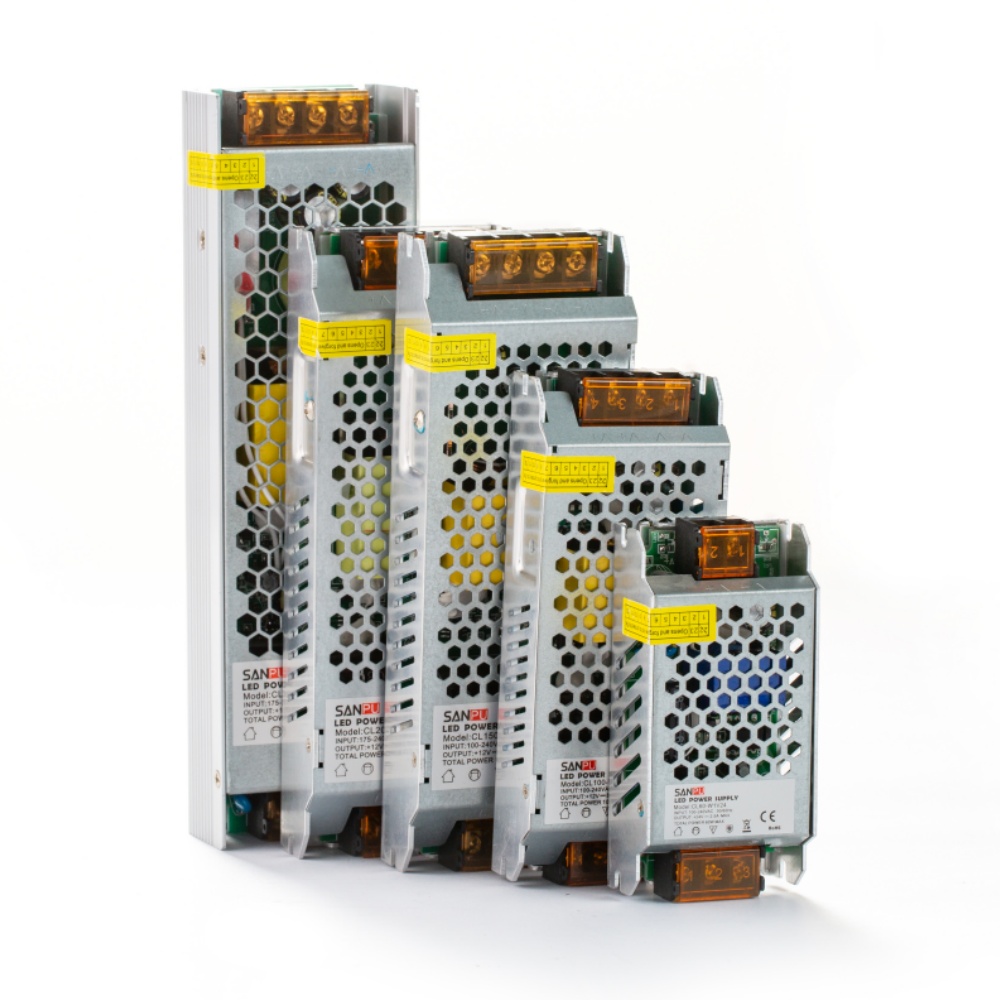

24 Volt Slim Power Supplies CL Model

Slim 24V power supplies

  • Total Power Wattage: 60-300 watts power supplies
  • Output: 24v 12v 5V in stock
  • Add to cart Order online
  • Sign in to see your user information

Power Supplies Search, select the ideal 24 Volt DC power supply

24 Volt New Slim Power Supplies CLL Model

Strip 24V power supplies

  • Total Power Wattage: 36w 60w watts power supplies
  • Outputs: 24v 12v in stock
  • Output current: 3A 5A in stock
  • Add to cart Order online
  • play orders

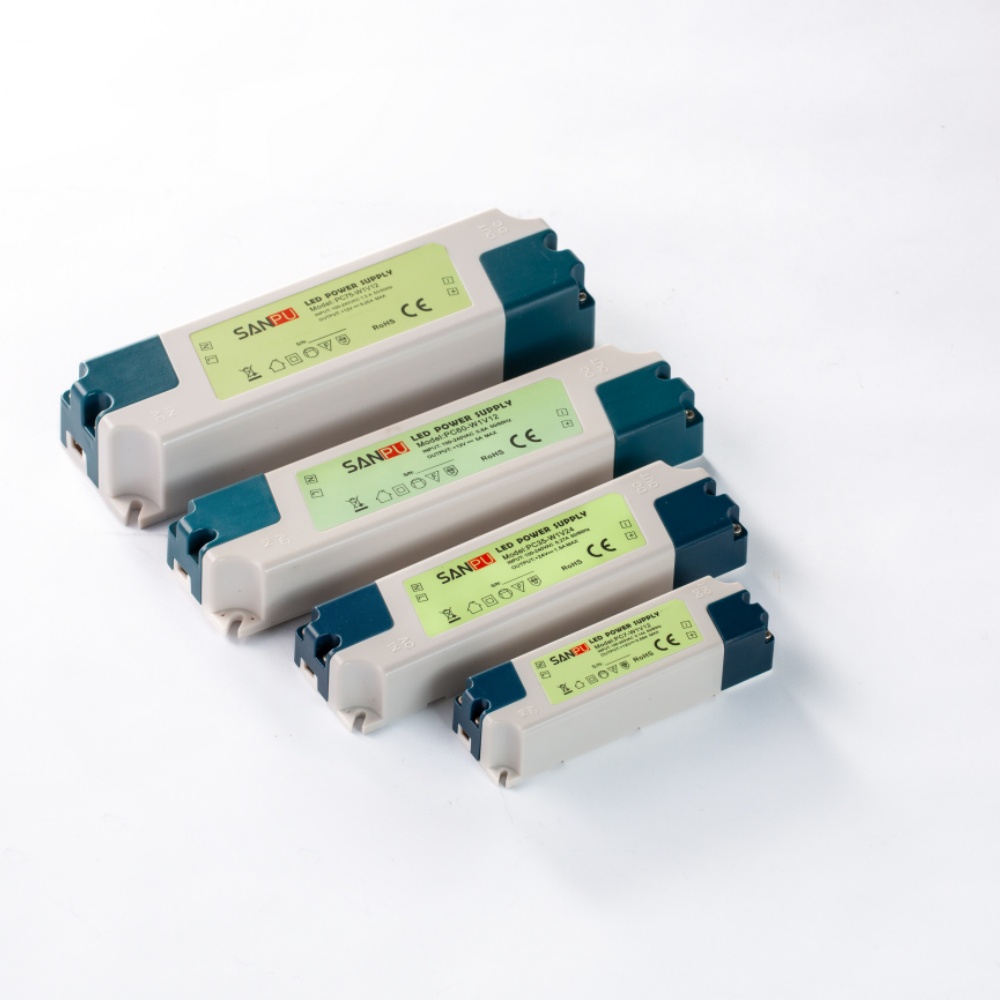

24V Strip Slim Plastic Power Supply PC

plastic 24V power supplies

  • Total Power Wattage: 12w-60w watts power supplies
  • Outputs: 24v 12v in stock
  • Output current: 1A 3A 5A in stock
  • place orders

24V Din rail Power Supplies

35w-300 din rail power supply

The devices are simply mounted to a standard DIN rail

24V Din rail Power Supplies

35w-300 din rail power supply

24V Din rail Power Supplies

35w-300 din rail power supply
