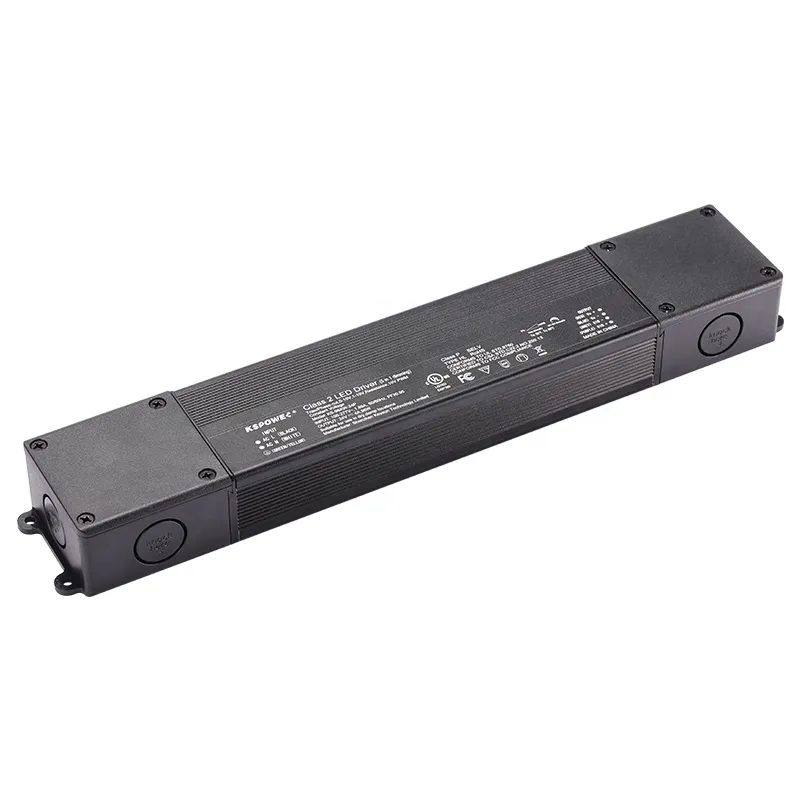

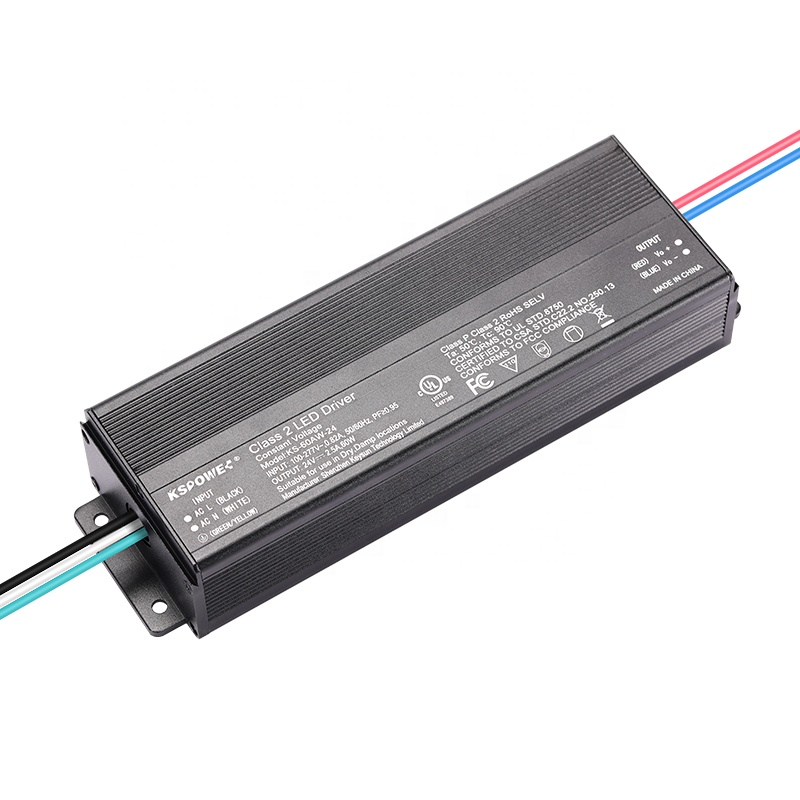

waterproof Triac dimmable LED driver pwm dimmable LED power supply

Category

FEATURES:

 Universal AC input voltage 100-277VAC

− Efficiency up to 90%

− Built-in active PFC function

− Single-channel & constant voltage mode and PWM style output

− Protection: OCP, OVP, SCP, OTP

− Limited Power Source

− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

Additional information

Product Details:

Triac dimmable waterproof IP67 LED driver DC PWM dimmable LED power supply UL class 2 the dimming power supply

Small dimmable led driverdimmer driverled driver dimming control

FEATURES:

 Universal AC input voltage 100-277VAC

− Efficiency up to 90%

− Built-in active PFC function

− Single-channel & constant voltage mode and PWM style output

− Protection: OCP, OVP, SCP, OTP

− Limited Power Source

− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

− Function options:

1. Non-dimmable

2. Triac/Phase-cut Dimmable

3. 4 in 1 dimmable (0-10V,1-10V,PWM, resistance)

4. 5 in 1 dimmable (0-10V,1-10V,TRIAC, PWM,resistance)

− Typical lifetime > 50000 hours

− 5 years warranty

− Available with or without integrated Junction Box

− IP65 Rated Enclosure for Indoor and Outdoor Use

− Wiring Compartments with Knock-Outs for Clean and Easy Installation

SPECIFICATION:

Input Voltage 100~277V AC 47~63Hz
Power Factor PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load
Output Voltage 12VDC 24VDC 36VDC 48VDC
Rated Current A A A A
Rated Power 40-320W
Ripple & Noise (max.) 200mVp-p 250mVp-p 250mVp-p 250mVp-p
Dimenion
258*68*41 mm(L*W*H)

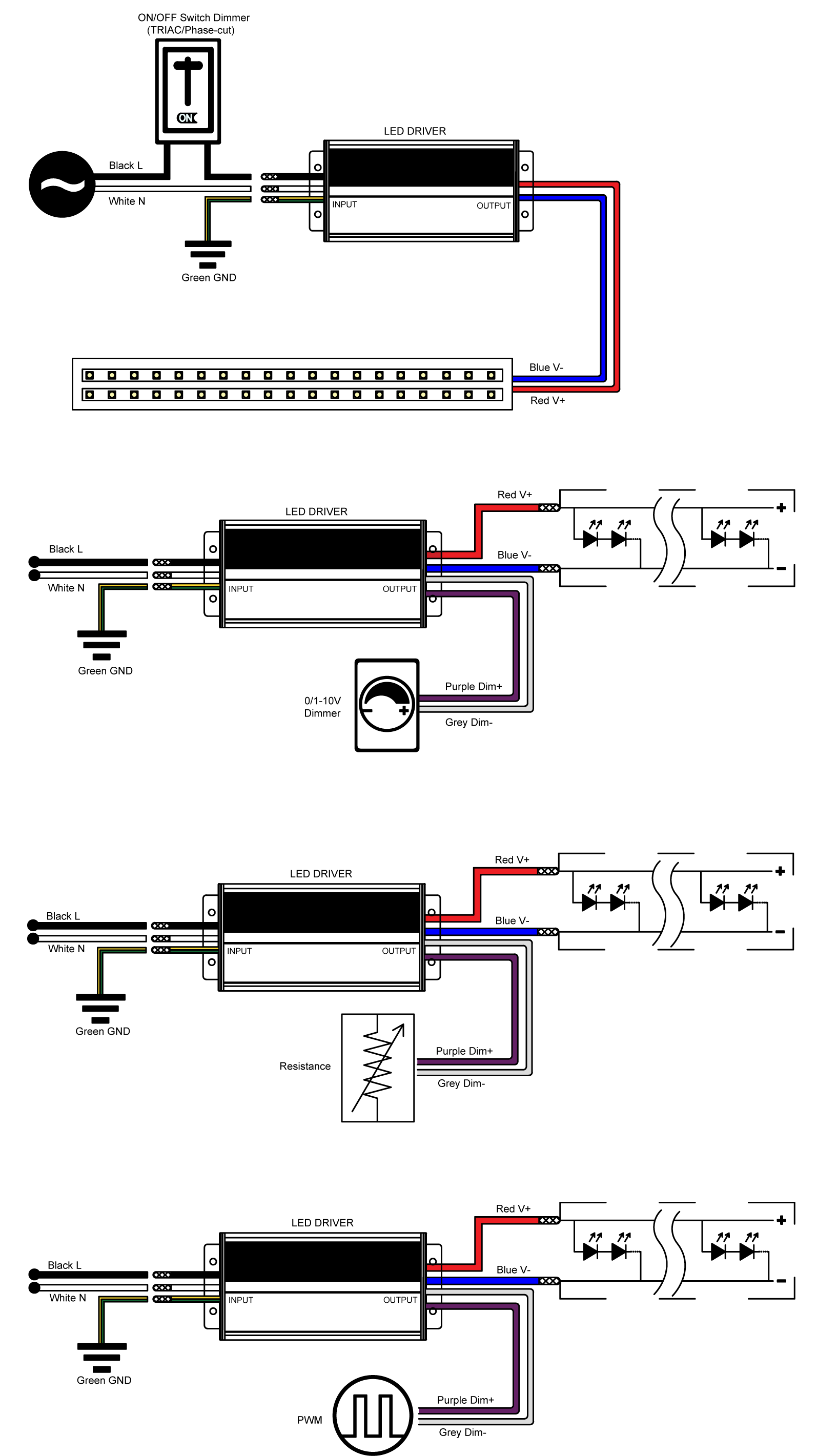

DIMMING CONNECT DRAWING:

switch dimmable led driver

Dimmension:dimmer power supply
PACKAGE



Package Piece/Carton Dimension/Carton Dimension/Brown Box Piece Weight Gross Weight/Carton
OEM package 15pcs 400 x 400 x 165 mm 382 x 74 x 45 mm 1.4 kg 21 kg

triac dimmable driver
OUR SERVICES

  • Our sample delivery time is 3 days.
  • Our warranty is 3 years.
  • Our product defect rate is 3%. More than 3% of defective products will be refilled.
  • OEM&ODM, any your customized lightings, we can help you to design and put into product.
  • Distributorship is offered for your unique design and some current models, Protection of your sales area, ideas of design, and all your private information.
  • Your inquiry related to our products or prices will be replied to in 24hrs. Well-trained and experienced staff to answer all your enquires in fluent English.
  • The delivery time of 100-500PCS is 7 workdays, the delivery time of 500-1000PCS is 10 workdays, the delivery time of 1000-2000PCS is 12 workdays, and the delivery time of 5000PCS is 20 workdays.
