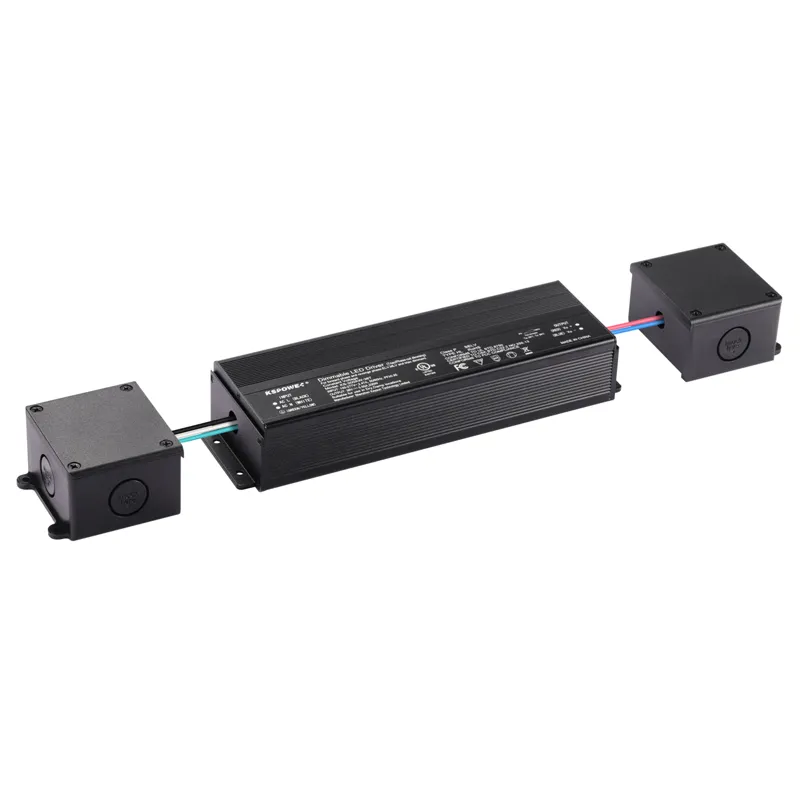

Waterproof constant power supply 24 volt dimmable LED driver

The SMPSPOWER brand – H series Triac dimmable LED driver 40-320 Watt12V 24 36 48 Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage led driver certified to meet UL cUL Class 2 and CE GS safety approvals. The led dimmable power supply use a low profile aluminum case with a junction box making the led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring a PFC function of up to 0.95 and higher, and an IP65 environment Protection Rating for indoor or outdoor use, the H series phase-cut dimmable LED power supply provides 5 years warranty and outstanding led dimming performance.

FEATURES:

− Universal AC input voltage 100-277VAC

− Efficiency up to 90%

− Built-in active PFC function

− Single-channel & constant voltage mode and PWM style output

− Protection: OCP, OVP, SCP, OTP

− Limited Power Source

− UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

− Function options:

1. Non-dimmable

2. Triac/Phase-cut Dimmable

3. 4 in 1 dimmable (0-10V,1-10V,PWM, resistance)

4. 5 in 1 dimmable (0-10V,1-10V,TRIAC, PWM,resistance)

− Typical lifetime > 50000 hours

− 5 years warranty

− Available with or without integrated Junction Box

− IP65 Rated Enclosure for Indoor and Outdoor Use

− Wiring Compartments with Knock-Outs for Clean and Easy Installation

SPECIFICATION:

Input Voltage	100~277V AC 47~63Hz
Power Factor	PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, full load
Output Voltage	12VDC	24VDC	36VDC	48VDC
Rated Current	A	A	A	A
Rated Power	40-320W
Ripple & Noise (max.)	200mVp-p	250mVp-p	250mVp-p	250mVp-p
Dimension	188*58*36 mm(L*W*H)

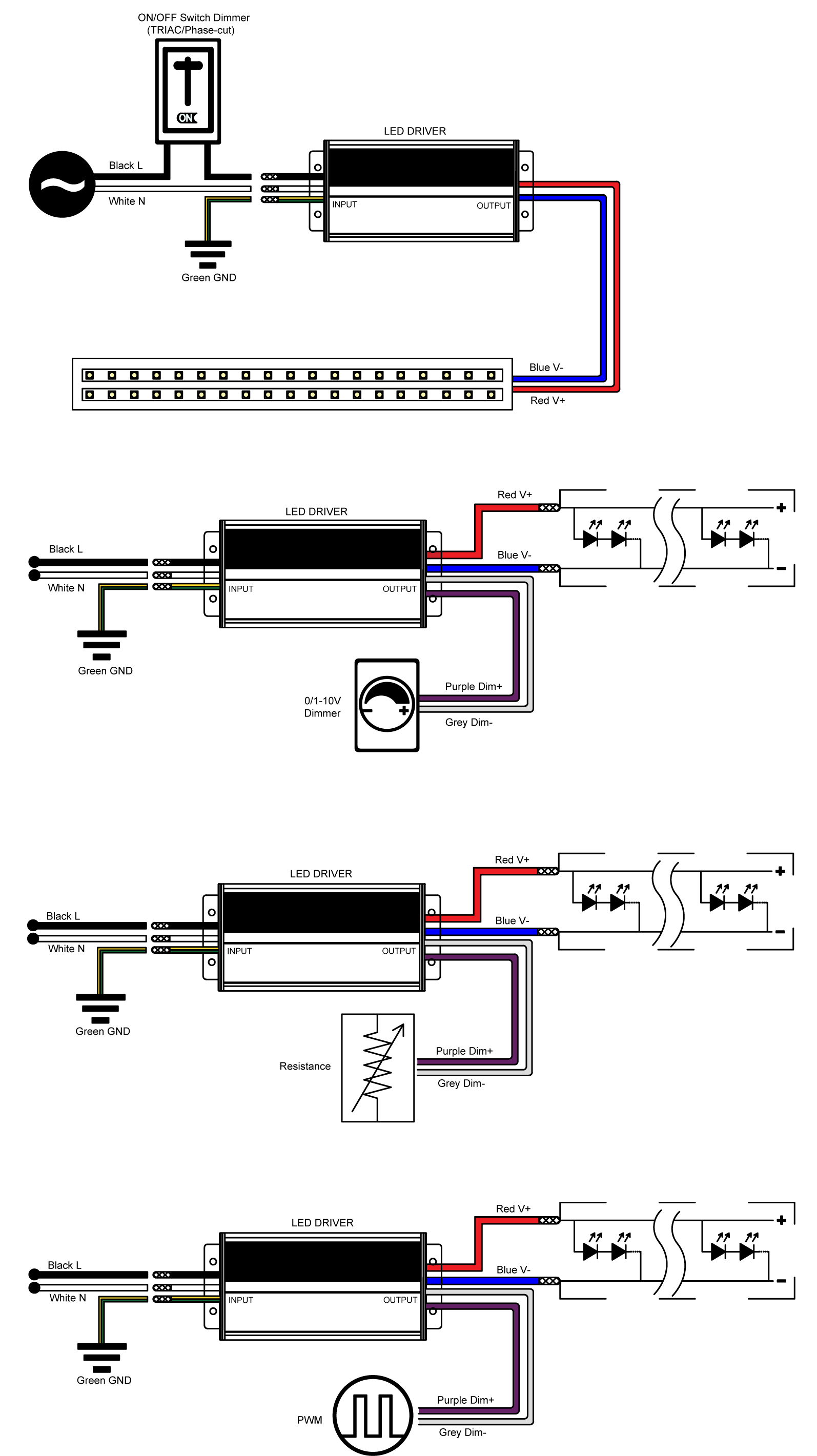

DIMMING CONNECT DRAWING:

DIMENSION DRAWING:



PACKAGE



Package	Piece/Carton	Dimension/Carton	Dimension/Brown Box	Piece Weight	Gross Weight/Carton
OEM package	20pcs	355x 330x 195 mm	313 x 64 x 40 mm	0.86 kg	18 kg





OUR SERVICES

• Our sample delivery time is 3 days.
• Our warranty is 3 years.
• Our product defect rate is 3%. More than 3% of defective products will be refilled.
• OEM&ODM, any customized lightings, we can help you to design and put into product.
• Distributorship is offered for your unique design and some current models, Protection of your sales area, ideas of design, and all your private information.
• Your inquiry related to our products or prices will be replied to in 24hrs. Well-trained and experienced staff to answer all your enquires in fluent English.
• The delivery time of 100-500PCS is 7 workdays, the delivery time of 500-1000PCS is 10 workdays, the delivery time of 1000-2000PCS is 12 workdays, and the delivery time of 5000PCS is 20 workdays.
