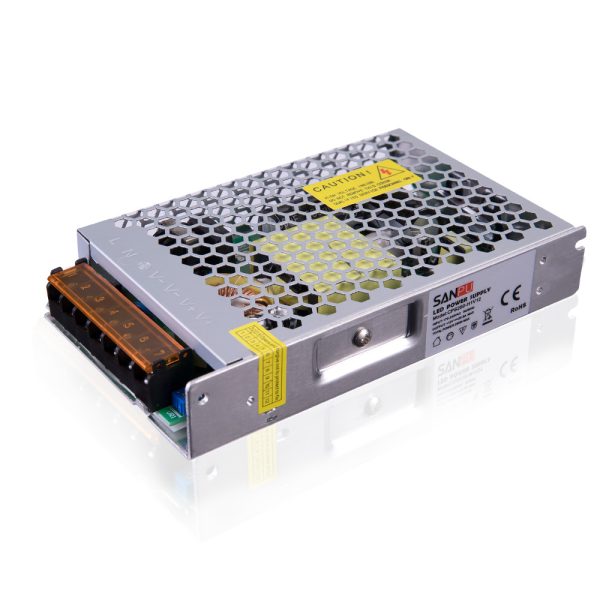

3D Printer Power Supply Ultra Thin Indoor CPS Type. Power range from 60W to 400W, High efficiency with sufficient power
2 hours 100% full-load burn-in test before shipping; OVP, OLP, OTP, and short circuit protection programmed
Aluminum case ultra-thin; CE ROHS FCC certified
Power | 100W, 120W, 150W, 15W, 200W, 250W, 300W, 36W, 60W |
---|---|
Input | 100-240V, 175-240V |
Output | 12V, 24V, 5V |
Datasheet | Series No. | Water Level |
Size(mm) | Weight (KG) |
AC input (V) |
DC output (V) |
DC output (A) |
Power (W) |
CPS60-W1V12/24 | IP20 | 112*79*30 | 0.25 | 110-240V | 12/24V | 5/2.5A | 60W | |
CPS100-W1V12/24 | IP20 | 130*98*30 | 0.30 | 110-240V | 12/24V | 8.3/4.1A | 100W | |
CPS150-W1V12/24 | IP20 | 162*98*30 | 0.35 | 110-240V | 12/24V | 12.5/6.2A | 150W | |
CPS250-H1V12/24 | IP20 | 162*98*30 | 0.48 | 175-240V | 12/24V | 20.8/10.4A | 250W | |
CPS360-H1V12/24 | IP20 | 215*105*29.5 | 0.75 | 110V/220V | 12/24V | 30/15A | 360W | |
CPS400-H1V12/24 | IP20 | 215*105*29.5 | 0.75 | 110V/220V | 12/24V | 33.3/16.6A | 400W |
Slim
Ultra-Thin
Standard
Plastic
Aluminum
Rainproof
Waterproof
Dimmable
