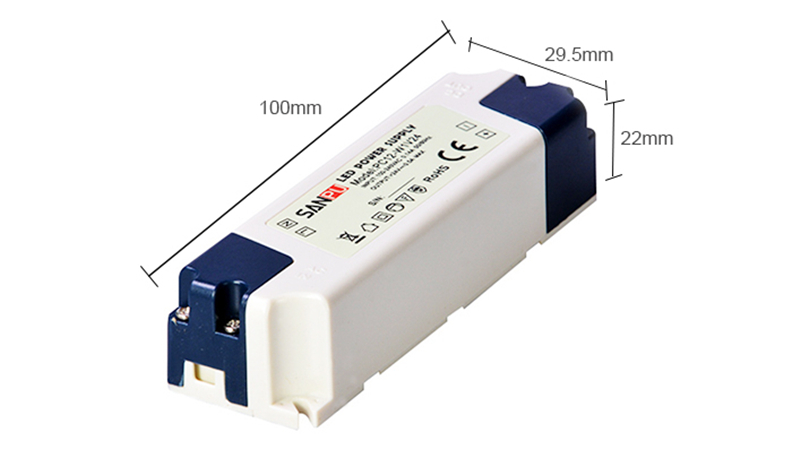

12W power supply 120v to 24v switching power supply 24vdc for led light cctv camera 0.5 amp Plastic PC types

MODEL 12V 12W 24V 12W
OUTPUT DC VOLTAGE 12V 12V
RATED CURRENT 1A 0.5A
CURRENT RANGE 0~1A 0~0.5A
RATED POWER 12W 12W
RIPPLE& NOISE (MAX.) 120mV 120mV
VOLTAGE TOLERANCE ±1% ±1%
SETUP , RISE TIME 1000ms, 30ms/230VAC 1000ms,30ms/115VAC at full load
HOLD UP TIME(Typ.) 100ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 80% 84%
AC CURRENT(Typ.) 0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT(Typ.) cold start 45A/230V
SHORT CIRCUIT protection type: recovers automatically after fault condition is removed
PROTECTION OVER LOAD 105~135% hiccup mode, auto-recovery
DC ADJ. RANGE ±10% rated output voltage
ENVIRONMENT WORKING TEMP –40°C~+60°C (no frost)
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP , HUMIDITY –40°C~85°C/10%~95%RH
SAFETY&EMC SAFETY STANDARDS CE ROHS
WITHSTAND VOLTAGE I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
EMC TESTING STANDARD EN55015:2006; EN61547:1995+A1:2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61347-3-13:2006
