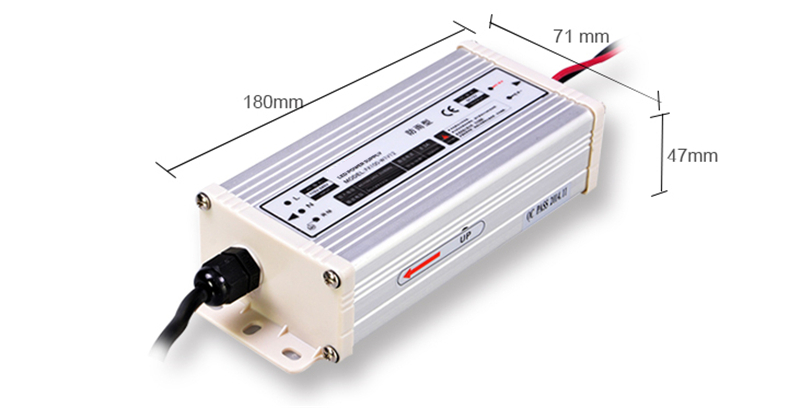

100W 8a 12v cctv power supply ac to dc power supply led display 12 volt power supply of led lights Rainproof FX Type

MODEL 5V 100W 12V 100W 24V 100W 48V 100W
OUTPUT DC VOLTAGE 5V 12V 24V 48V
RATED CURRENT 20A 8.5A 4.5A 2A
CURRENT RANGE 0~20A 0~8.5A 0~4.5A 0~2A
RATED POWER 100W 100W 100W 100W
RIPPLE& NOISE (MAX.) 80mVp-p 120mVp-p 120mVp-p 150mVp-p
VOLTAGE TOLERANCE ±2% ±1% ±1% ±1%
SETUP , RISE TIME 1000ms, 20ms/230VAC 1000ms, 20ms/115VAC at full load
HOLD UP TIME(Typ.) 30ms/230VAC 25ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 81% 84% 85% 85%
AC CURRENT(Typ.) 2A/115VAC 1.2A/230VAC
INRUSH CURRENT(Typ.) COLD START 45A
SHORT CIRCUIT protection type: recovers automatically after fault condition is removed
PROTECTION OVER LOAD 105~135% hiccup mode , auto-recovery
DC ADJ. RANGE 115%~135% Cut off the output , auto-recovery
ENVIRONMENT WORKING TEMP -20℃~ +60℃
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP , HUMIDITY -40℃~+85℃,10%~90%RH
SAFETY&EMC SAFETY STANDARDS CE,ROHS
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC O/P-FG:0.5KVAC
EMC TESTING STANDARD EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006
