24V Power Supply

Choose a 24V Power Supply manufacturer

To choose a 24v power supply manufacturer we should first know the datasheet of products. As it knows 24v is the output voltage of the power supply, and it is widely used. Second, as a 24vdc power supply wholesale, it has a variety of led power supplies, as many as four hundred different sorts. Each has a distinct function and suits a unique condition. The several most frequently required types by our customers are 24v power supply, 24v power supply outdoor, and 24-volt power supply adapter, especially the 24v power supply 5a. It is one of the top sellers of 24v power supply china in the SPS market which is broadly used for 24v led lighting products. To choose a power supply suitable for lights, not only the voltage but also the power are supposed to be taken into account. About the led strips watt, some customers are confused about the way to calculate.

Qty x watts= Power.

We need to know the length of the led strips, the quantity of led beads, and the led beads’ watts. In this way, we can calculate the power and also work out the result of the watt of strips.

24V Rainproof Power Supply Slim Strip Plastic LLP

Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN Size
LLP6060W100-240V12V/24VIP67182*32.6*230.14100395*295*210
LLP100100W100-240V12V/24VIP67182*32.6*230.14100395*295*210
LLP150150W100-240V12V/24VIP67223*32.6*230.250295*245*210
LLP200200W175-240V12V/24VIP67223*32.6*230.250295*245*210
LLP250250W175-240V12V/24VIP67256.6*45*230.3650295*280*270
LLP300300W175-240V12V/24VIP67256.6*45*230.3650295*280*270

24VDC Power Supply Slim Indoor CLL

35w cll slim strip power supply
60-12V CLL Slim Strip Power Supply
60-12V CLL Slim Strip Power Supply
150-12V CLL Slim Strip Power Supply
150-12V CLL Slim Strip Power Supply
250-12V CLL Slim Strip Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN SizeTotal KG
CLL35-W1V1235W100-240V12V/24VIP20229*18*150.08135325*245*22510.8
CLL60-W1V1260W100-240V12V/24VIP20316*18*150.19110350*220*27520.9
CLL150-W1V12/24150W175-240V12V/24VIP20202*55*220.3530325*245*22510.5
CLL250-H1V12/24250W175-240V12V/24VIP20280*55*220.4821325*245*22510.08

24V Waterproof Power Supply IP67 Slim LLG

100-12V LLG Slim Strip Power Supply
150-12V LLG Slim Strip Power Supply
200-24V LLG Slim Strip Power Supply
150-12V LLG Slim Strip Power Supply
200-24V LLG Slim Strip Power Supply
300-12V LLG Slim Strip Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN Size
LLG6060W100-240V12V/24VIP67143.5*44*250.350375*305*170
LLG100100W100-240V12V/24VIP67143.5*44*250.350375*305*170
LLG150150W100-240V12V/24VIP67238*44*250.4830315*300*205
LLG200200W175-240V12V/24VIP67238*44*250.4830315*300*205
LLG250250W175-240V12V/24VIP67268*44*250.5825325*305*170
LLG300300W175-240V12V/24VIP67268*44*250.5825325*305*170

24V Power Supply Plastic Indoor PC

15-12V Plastic Slim LED Power Supply
35-12V Plastic Slim LED Power Supply
60-24V Plastic Slim LED Power Supply
15-24V Plastic Slim LED Power Supply
35-24V Plastic Slim LED Power Supply
60-24V Plastic Slim LED Power Supply
Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN SizeTotal KG
PC15-W1V12/2415W100-240V12V/24VIP40100*29.5*220.1100325*248*22512.42
PC35-W1V12/2435W100-240V12V/24VIP40145*38*220.1580330*240*2608.52
PC60-W1V12/2460W100-240V12V/24VIP40175.5*42*240.2100400*315*27016.38

24V Waterproof Power Supply Plastic LP

20-12V Plastic Waterproof LED Power Supply
35-12V Plastic Waterproof LED Power Supply
35-12V Plastic Waterproof LED Power Supply
60-24V Plastic Waterproof LED Power Supply
120-24V Plastic Waterproof LED Power Supply
150-24V Plastic Waterproof LED Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Carton SizeWeight
(KG)
PCS/CTNCTN Size
LP12-W1V12W100-240V12V/24VIP67139*30*22315*248*2400.290315*248*240
LP20-W1V20W100-240V12V/24VIP67139*30*22315*248*2400.290315*248*240
LP35-W1V35W100-240V12V/24VIP67151*40*30315*248*2400.3245315*248*240
LP60-W1V60W100-240V12V/24VIP67165*42*32315*248*2400.3832315*248*240
LP75-W1V75W100-240V12V/24VIP67165*42*32315*248*2400.3832315*248*240
LP100-W1V100W100-240V12V/24VIP67192*52*37315*248*2400.6825315*248*240
LP120-W1V120W100-240V12V/24VIP67192*52*37315*248*2400.6825315*248*240
LP150-W1V150W100-240V12V/24VIP67192*52*37315*248*2400.6825315*248*240

24V Waterproof Power Supply Thin CLPS

60-12V Waterproof LED Power Supply
100-12V Waterproof LED Power Supply
120-12V Waterproof LED Power Supply
150-24V Waterproof LED Power Supply
200-24V Waterproof LED Power Supply
300-24V Waterproof LED Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN SizeTotal KG
CLPS60-W1V1260W100-240V12V/24VIP67168*60.5*180.3572415*380*20029.87
CLPS100-W1V12100W100-240V12V/24VIP67178*60.5*180.3772415*380*20026.76
CLPS120-W1V12120W100-240V12V/24VIP67178*60.5*180.3772415*380*20026.76
CLPS150-W1V12150W100-240V12V/24VIP67207.8*59*32.30.7135430*278*25024.98
CLPS200-H1V12200W100-240V12V/24VIP67237.8*59*32.30.7832430*278*25026.27
CLPS250-H1V12250W175-240V12V/24VIP67240*72*32.31.0120440*278*20020.2
CLPS300-H1V12300W175-240V12V/24VIP67240*72*32.31.0120440*278*20020.2

24VDC Power Supply Standard Indoor EPS

60-12V indoor LED Power Supply
150-24V EPS Standard LED Power Supply
150-24V EPS Standard LED Power Supply
200-24V EPS Standard LED Power Supply
150-24V EPS Standard LED Power Supply
350-24V EPS Standard LED Power Supply
Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN Size
EPS25-W1V1225W100-240V12V/24VIP2085*58*300.1772350*220*275
EPS36-W1V1235W100-240V12V/24VIP2085*58*300.1872350*220*275
EPS60-W1V1260W100-240V12V/24VIP20110*78*320.2560415*380*200
EPS100-W1V12100W100-240V12V/24VIP20130*98*360.2736430*278*227
EPS120-W1V12120W100-240V12V/24VIP20130*98*360.2936430*278*227
EPS150-W1V12150W100-240V12V/24VIP20160*98*400.4332395*357*235
EPS200W200W110V/220V12V/24VIP20160*98*400.532395*357*235
EPS250W250W110V/220V12V/24VIP20160*98*400.5232395*357*235
EPS350-H1V12350W110V/220V12V/24VIP20198*98*400.6432445*395*235
EPS400-H1V12400W110V/220V12V/24VIP20198*98*400.6632445*395*235
EPS500-W1V12500W110V/220V12V/24VIP20199*98.5*500.7536464*357*342
EPS600-W1V12600W110V/220V12V/24VIP20199*98.5*500.836464*357*342

24V Power Supply Ultra Thin Indoor CPS

60-12V CPS Ultra Thin Power Supply
100-12V CPS Ultra Thin Power Supply
150-12V CPS Ultra Thin Power Supply
150-12V CPS Ultra Thin Power Supply
250-12V CPS Ultra Thin Power Supply
400-12V CPS Ultra Thin Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN SizeTotal KG
CPS60-W1V1260W100-240V12V/24VIP20110.57*78*300.2166430*278*25014.65
CPS100-W1V12100W100-240V12V/24VIP20129*97.9*300.2942430*278*22712.66
CPS150-W1V12150W100-240V12V/24VIP20160*98*300.3540395*357*23514.42
CPS250-H1V12250W110V/220V12V/24VIP20160*98*300.4540395*357*23518.62
CPS350-H1V12350W110V/220V12V/24VIP20215*105*29.50.6928430*278*25019.84
CPS400-H1V12400W110V/220V12V/24VIP20215*105*29.50.6928430*278*25019.84

24VDC Power Supply Slim Indoor CL

60-12V CL Slim Power Supply
100-12V CL Slim Power Supply
150-12V CL Slim Power Supply
200-12V CL Slim Power Supply
250-12V CL Slim Power Supply
250-12V CL Slim Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN SizeTotal KG
CL60-W1V12/2460W100-240V12V/24VIP20139*55*280.240362*273*1608.4
CL60-W1V12/24 SD60W100-240V12V/24VIP20105*50*280.1370330*240*26014
CL100-W1V12/24100W100-240V12V/24VIP20139*55*280.2340362*273*1609.46
CL150-W1V12/24150W100-240V12V/24VIP20178*61*280.360415*380*20018.84
CL200-H1V12/24200W175-240V12V/24VIP20178*61*280.3560415*380*20021.26
CL250-H1V12/24250W175-240V12V/24VIP20215*61.7*30.80.4944430*278*25021.97
CL300-H1V12/24300W175-240V12V/24VIP20215*61.7*30.80.4844430*278*25021.49
CL200-H1V5200W175-240V5VIP20215*61.7*30.80.4544430*278*25019.97

24VDC Power Supply Slim Indoor NL

35-12V NL Slim Power Supply
60-12V NL Slim Power Supply
100-12V NL Slim Power Supply
150-12V NL Slim Power Supply
200-12V NL Slim Power Supply
250-12V NL Slim Power Supply
Series No.Power
(W)
AC input
(V)
DC output
(V*A)
Water
Level
Size(mm)Weight
(KG)
PCS/CTNCTN SizeTotal KG
NL15-W1V1215W100-240V12V/24VIP20113*42*30.30.13122430*278*25015.58
NL35-W1V1235W100-240V12V/24VIP20113*42*30.30.16122430*278*25017.44
NL60-W1V1260W100-240V12V/24VIP20157*42*300.2374430*278*25017.02
NL100-W1V12100W100-240V12V/24VIP20178*48.3*34.50.3156430*278*22718.24
NL150-W1V12150W100-240V12V/24VIP20200*58*360.436430*278*22714.86
NL200-H1V12200W175-240V12V/24VIP20223*70*390.6230430*278*250
NL250-H1V12250W175-240V12V/24VIP20223*70*390.6230430*278*25019.9
NL300-H1V12300W175-240V12V/24VIP20223*70*390.6530430*278*25020.9

24VDC Rainproof Power Supply FX

60-24V FX Rainproof Power Supply
100-12V FX Rainproof Power Supply
150-24V FX Rainproof Power Supply
200-24V FX Rainproof Power Supply
250-12V FX Rainproof Power Supply
400-12V FX Rainproof Power Supply
Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN SizeTotal KG
FX60-12/2460W100-240V12V/24VIP44165*71*420.3359464*357*37220.97
FX100-12/24100W100-240V12V/24VIP44180*71*420.459464*357*37224.33
FX150-12/24150W100-240V12V/24VIP44230*92*530.6630464*357*37221
FX250-12/24250W175-240V12V/24VIP44230*92*530.7630464*357*37224.08
FX350-12/24350W110V/220V12V/24VIP44265*112*58121464*357*37221.73
FX400-12/24400W110V/220V12V/24VIP44265*112*58121464*357*37221.73
FX600-12/24600W110V/220V12V/24VIP44320*112*581.221464*357*37225.51
FX300-H1V5300W175-240V5VIP44265*112*58121464*357*37225.51

24VDC Rainproof Power Supply IP65 CFX

150-12V IP65 CFX Rainproof Power Supply
350-12V IP65 CFX Rainproof Power Supply
400-12V IP65 CFX Rainproof Power Supply
150-12V IP65 CFX Rainproof Power Supply
350-12V IP65 CFX Rainproof Power Supply
400-12V IP65 CFX Rainproof Power Supply
Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN Size
CFX150-W1V12/24150W100-240V12V/24VIP65153*80*32.390.530350*220*275
CFX350-H1V12/24350W175-240V12V/24VIP65218*110*32.39114315*248*240
CFX400-H1V12/24400W175-240V12V/24VIP65218*110*32.39114315*248*240

24V Rainproof Power Supply IP44 FXX

60-12V FXX Rainproof Power Supply
100-12V FXX Rainproof Power Supply
150-12V FXX Rainproof Power Supply
200-12V FXX Rainproof Power Supply
250-12V FXX Rainproof Power Supply
400-12V FXX Rainproof Power Supply
Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN SizeTotal KG
FXX60-12/2460W100-240V12V/24VIP44111*82*440.22105464*357*37224.27
FXX100-12/24100W100-240V12V/24VIP44130*82*440.2984464*357*37225.34
FXX150-12/24150W100-240V12V/24VIP44150*82*450.3570464*357*37225.69
FXX250-12/24250W175-240V12V/24VIP44171*109*500.5648464*357*37227
FXX350-12/24350W175-240V12V/24VIP44220*109*500.7236464*357*37227.13
FXX400-12/24400W175-240V12V/24VIP44220*109*500.7236464*357*37227.13
FXX200-H1V5200W175-240V5VIP44171*109*500.55548464*367*37227
FXX300-H1V5300W175-240V5VIP44221*109*501.0236464*367*37227.13

24V Indoor Slim Black Power Supply XTL

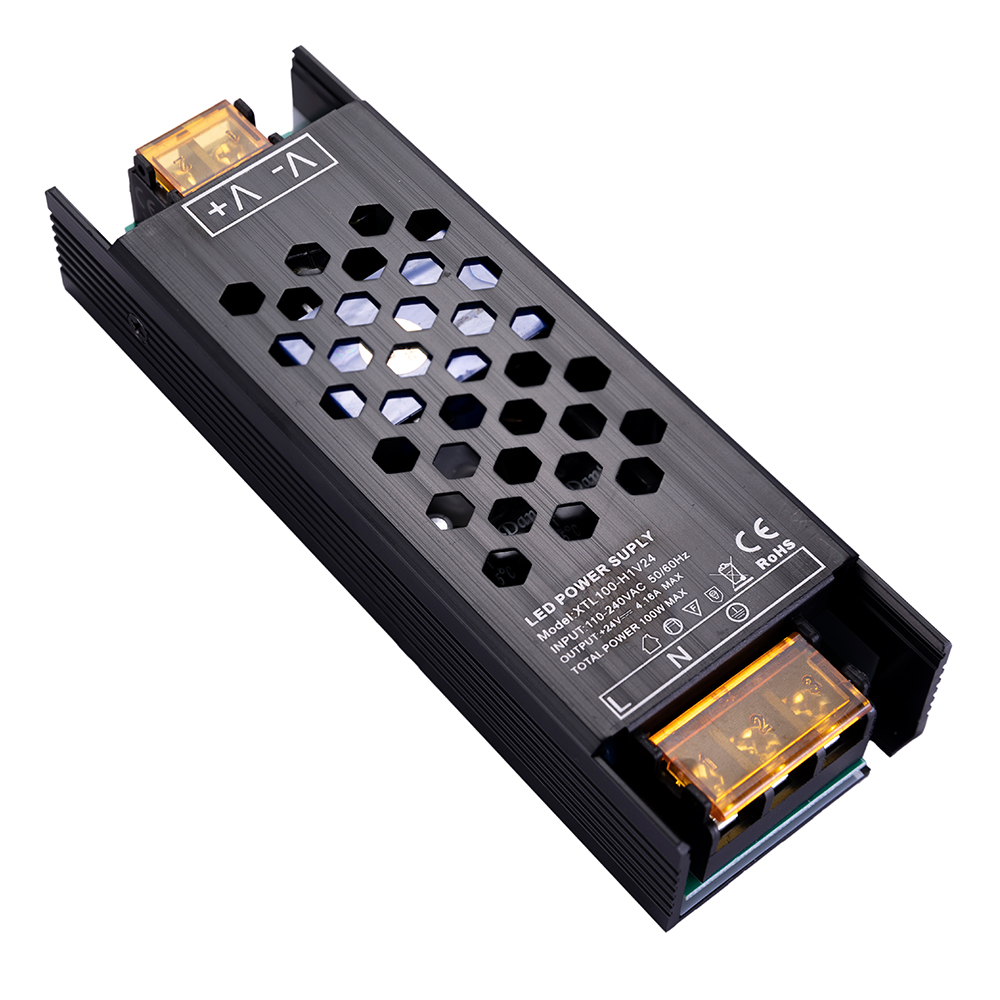

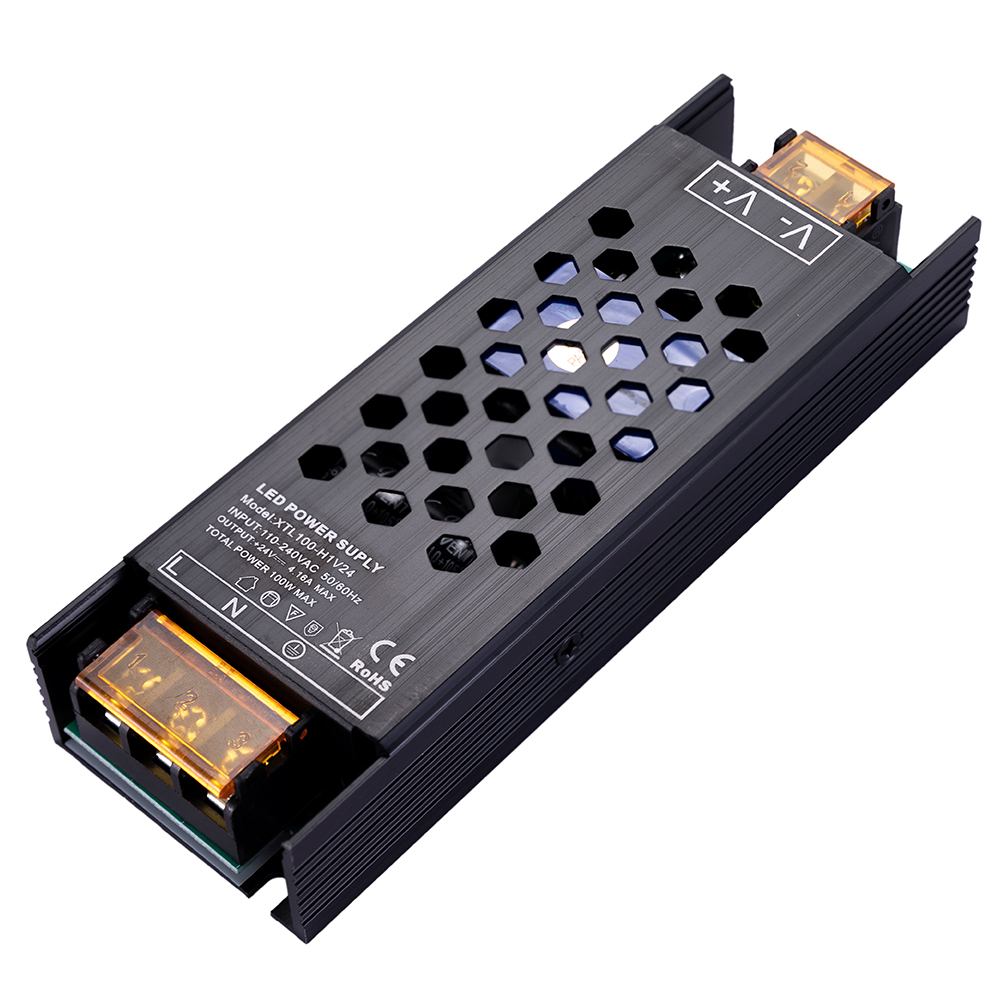

100W Slim power supply

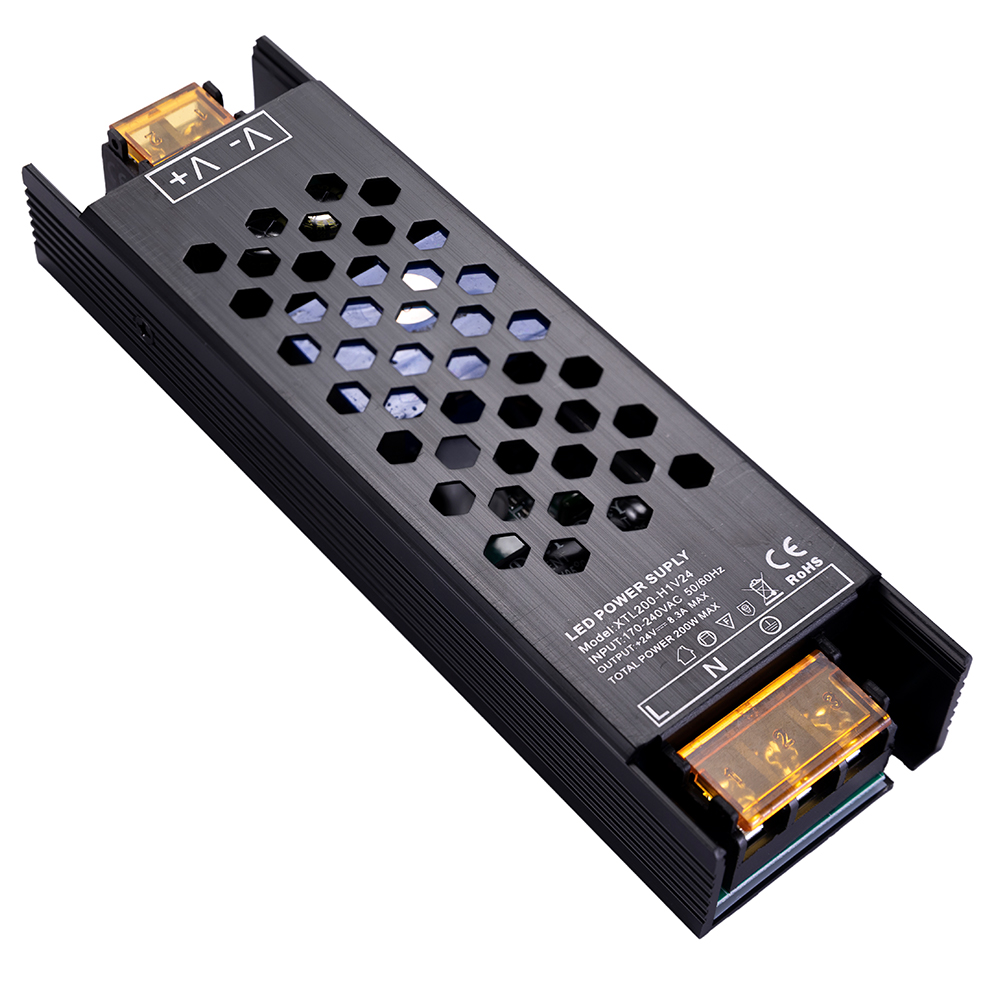

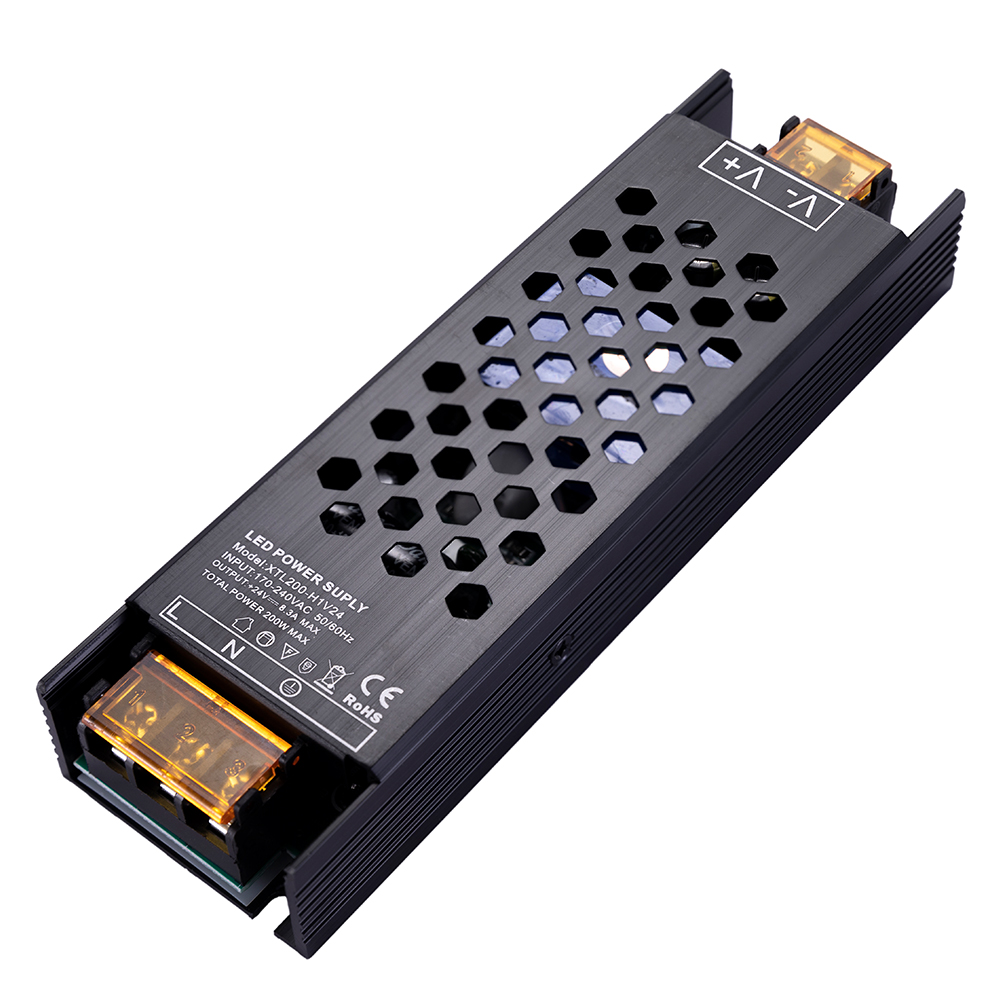

200W Slim power supply

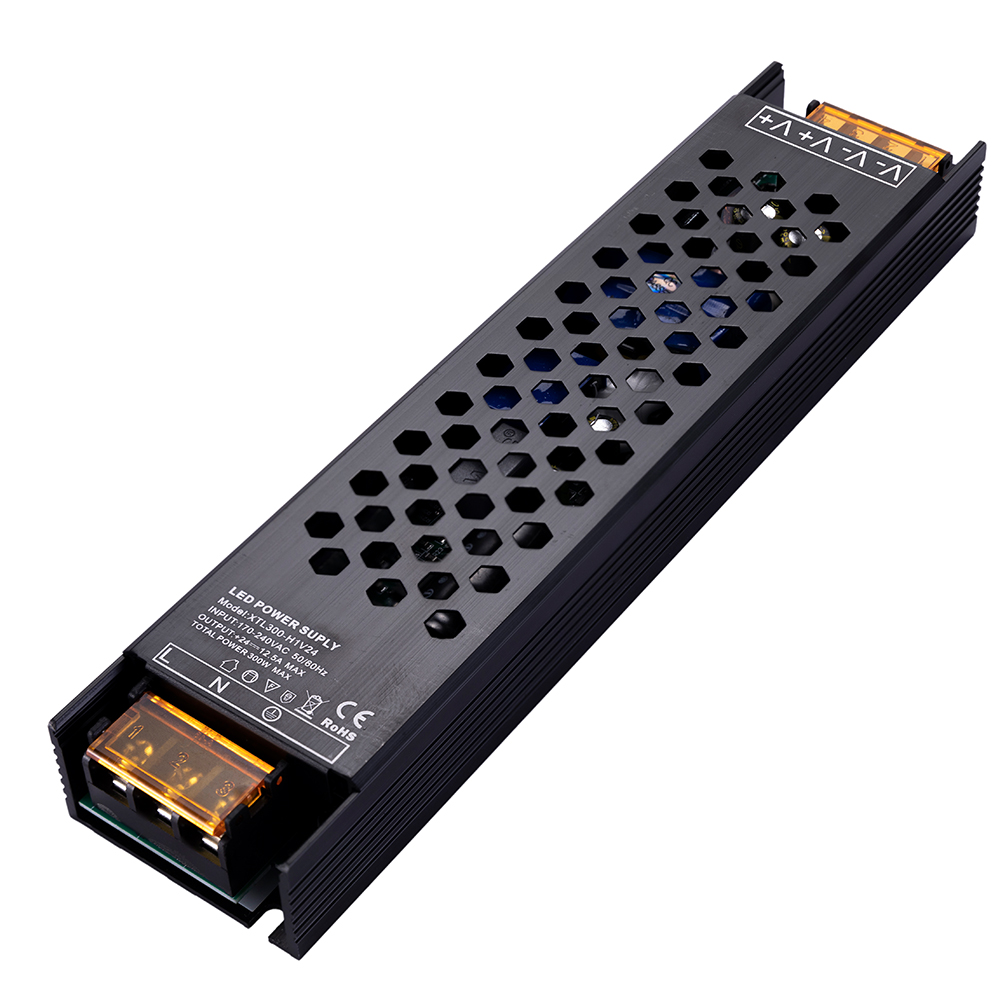

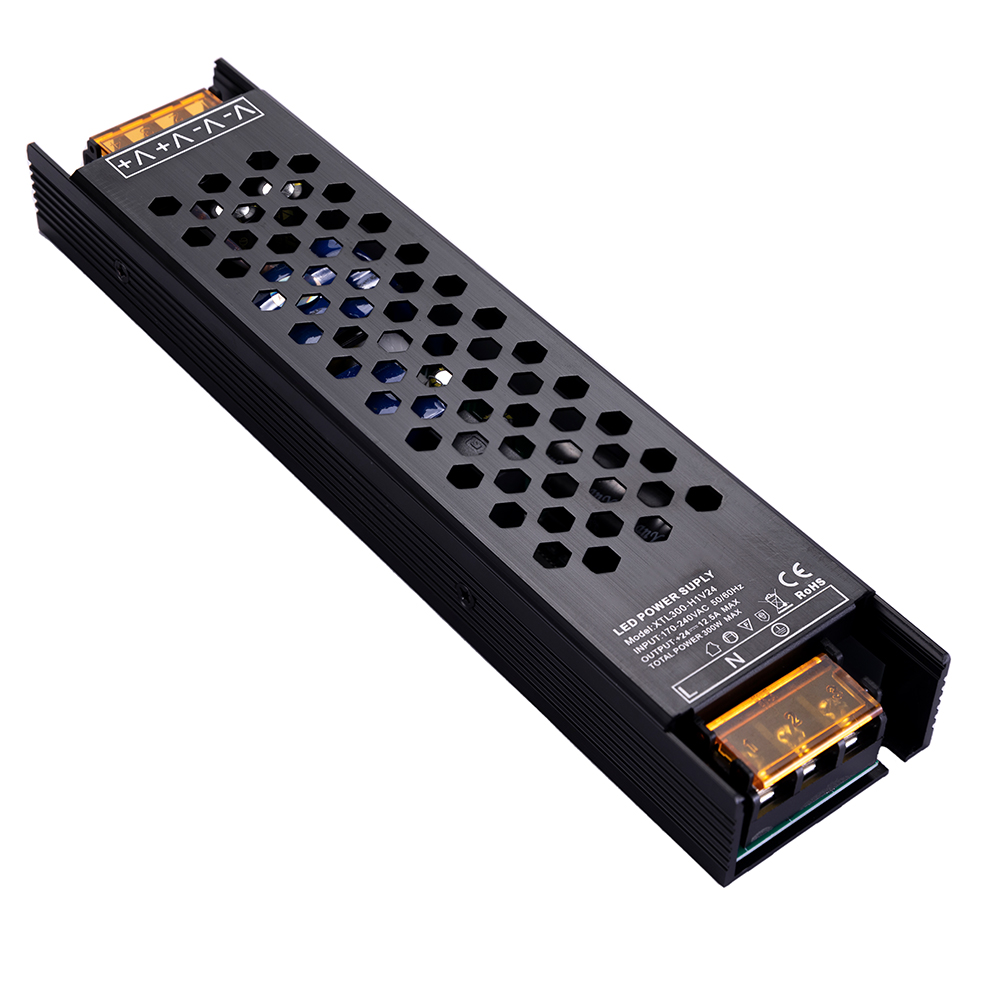

300W slim power supply
100W Slim power supply
200W Slim power supply
300W Slim power supply
Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN Size
XTL150-H1V24150W175-240V24VIP20144*49*260.2550350*220*275
XTL250-H1V24250W175-240V24VIP20163*49*260.350315*248*240
XTL400-H1V24400W175-240V24VIP20215*49*260.3250315*248*240

Choose SMPSpowers to Customized for 24V LED Projects

SMT QC control

As a power supply manufacturer, SANPU is fully equipped, with an integrating sphere, constant temperature and humidity box, pressure tester, and other product performance evaluation equipment. All the power supplies are automated manufacturing. To be a good power supply supplier, we regard providing customers with high-quality, low-cost customized LED power supply, quality, and the delivery time as our aim.

Wave soldering production

LED Driver production for Horticulture grow lights

In electronics manufacturing, LED Drivers are used in wave soldering production. This is a process in which electronic components are soldered onto a printed circuit board (PCB).

PCB
SMT

SMT PCB in Production

In surface-mount technology (SMT), grow light LED Drivers are used to solder components onto a PCB. This is done by heating the leads of the component so that they melt and flow into the exposed pads on the PCB.

Aging test of power supplies

Improve the efficiency of LED power supply aging, exclude bad, ensure the quality of power brand, and ensure the consumer group’s safety.

aging test

24v Systems

You can run nearly anything else, such as a microwave oven, TELEVISION, satellite system, computer system, illumination, and more. The 12v system on a Motor Home is not that challenging yet can quickly irritate the best of us.

 DC-DC power products enable you to connect electric devices right to automobile electrical outlets or similar sources that straight supply present or DC power. These power products are not one of the most frequently utilized, though. Browse DC-DC Power Supplies While DC-DC power supplies exist, the most usual type is the AC-DC kind.

 12V DC is more secure than 12V Air Conditioning. Body resistance decreased when the 12V A/C still might cause the dead, 12V DC will certainly not remain 100%. Nevertheless, the danger level of electrical shock to the human body generally relies on the size of the current travelling through the body and also the length of the energization time.

 A Switching DC power supply (also known as switch mode power supply) controls the outcome voltage with a procedure called pulse size modulation (PWM). The PWM process creates some high-frequency sound yet allows the changing power products to be constructed with very high-power efficiency and tiny form aspects.

 12V power supply is one of the most common power supplies in use today. As a whole, a 12VDC output is obtained from a 100VAC-277VAC input utilizing a mix of transformers; 12 V power supplies can be of two types: 12V consistent power supplies and also 12V inconstant power products.

12V Power Supply Repair

 Typical devices that can make use of 12V USB adapters include Mobile phones. Tablet computers. GPS units.

 When you see 110 VAC on a home appliance, it suggests 110 volts A/C power. Voltage is a measure of “circuit stress.” It describes just how hard the electrical energy presses with a circuit. The higher the voltage, the more complex the electrical power pushes on a circuit, and the more electricity flows with it.

 Suppose inadvertently; the Air Conditioner line touches the DC line attached to the electronic circuit and elements. In that case, the result may misbehave, smell smoke, flames, or perhaps worse. In the case of A/C features, when DC is linked to it, it may not work appropriately (that’s why a transformer can’t be operated in DC voltage) or perhaps begin to smoke and burn.

Send Your Inquiry Today

KNOW MORE ABOUT US

We have over 20 product experts with over 12 years of experience designing and assembling countless 24V power supplies. We can be your sturdy backbone.

en English
X

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@smpspower.com”.

The Newest & Hottest Products In 2022

All your answers are in SANPU’s monthly report, 2022

We picked up the most popular items from 1,000+ items of our clients, to help you find the wining product.
