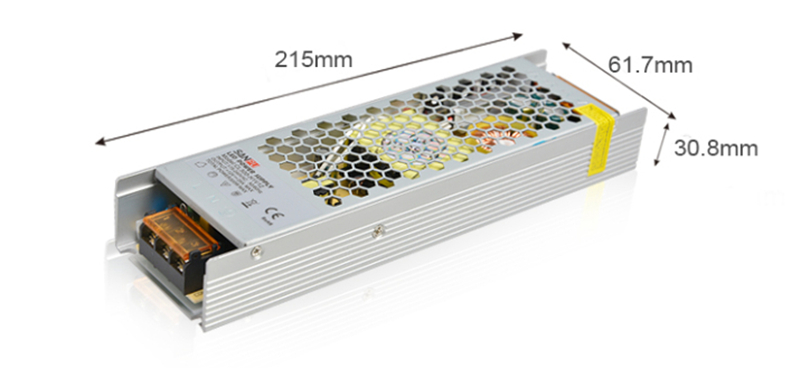

12v 25 amp güç kaynağı 220v ila 12v güç kaynağı 300W İnce CL Tipi

MODEL 12V 300W 24V 300W
ÇIKTI DC GERİLİMİ 12V 24V
ANMA AKIMI 20A 10 A
GÜNCEL ARALIK 0~25A 0~12.5A
ANMA GÜCÜ 300W 300W
DALGALANMA GÜRÜLTÜSÜ (MAKS.) 120mVp-p 150mVp-p
GERİLİM TOLERANSI ±1% ±1%
KURULUM, YÜKSELME ZAMANI 1000ms, 50ms/230VAC 1000ms,50ms/115VAC tam yükte
BEKLEME SÜRESİ(Tip.) Tam yükte 20ms/230VAC 16ms/115VAC
GİRİŞ VOLTAJ ARALIĞI 85~132VAC/170~264VAC
FREKANS ARALIĞI 47~63Hz
GÜÇ FAKTÖRÜ(Tip.) PF> 0.6/220VAC
VERİMLİLİK(Tip.) 83% 86%
AC AKIM(Tip.) 3.4A/115VAC 1.7A/230VAC
HAREKET AKIMI(Tip.) 25A/115VAC 50A/230VAC
KISA DEVRE koruma türü: arıza durumu kaldırıldıktan sonra otomatik olarak kurtarılır
KORUMA AŞIRI YÜKLEME %105~135 hıçkırık modu, otomatik kurtarma
HARARET ≥85 °C başlatma koruması, otomatik olarak düzelir
DC ADJ. ARALIK %115 %~135% Çıkışı kesin, otomatik kurtarma
ÇEVRE ÇALIŞMA SICAKLIĞI -20℃~ +60℃
ÇALIŞMA NEMİ %20 %~90% Bağıl Nem
DEPOLAMA SICAKLIĞI, NEM -40℃~+85℃,10 %~90% BN
GÜVENLİK&EMC GÜVENLİK STANDARTLARI CE, ROHS
DAYANIKLI GERİLİM I/PO/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
EMC TEST STANDARDI EN55015:2006;EN61547:1995+A1:2000;EN61000-3-2:2006;
EN61000-3-3:1995+A2:2005;EN61347-1:2001;EN61347-2-13:2006
